Description
Product Overview

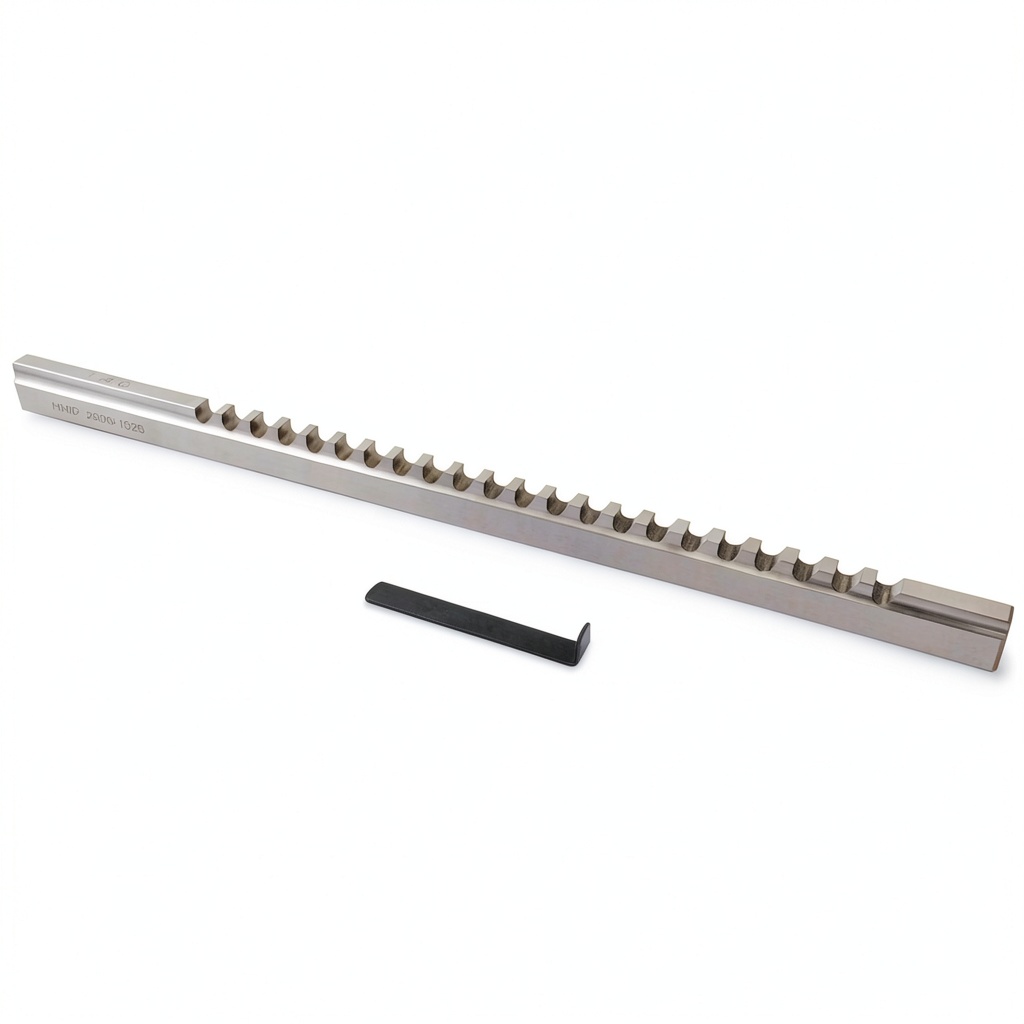

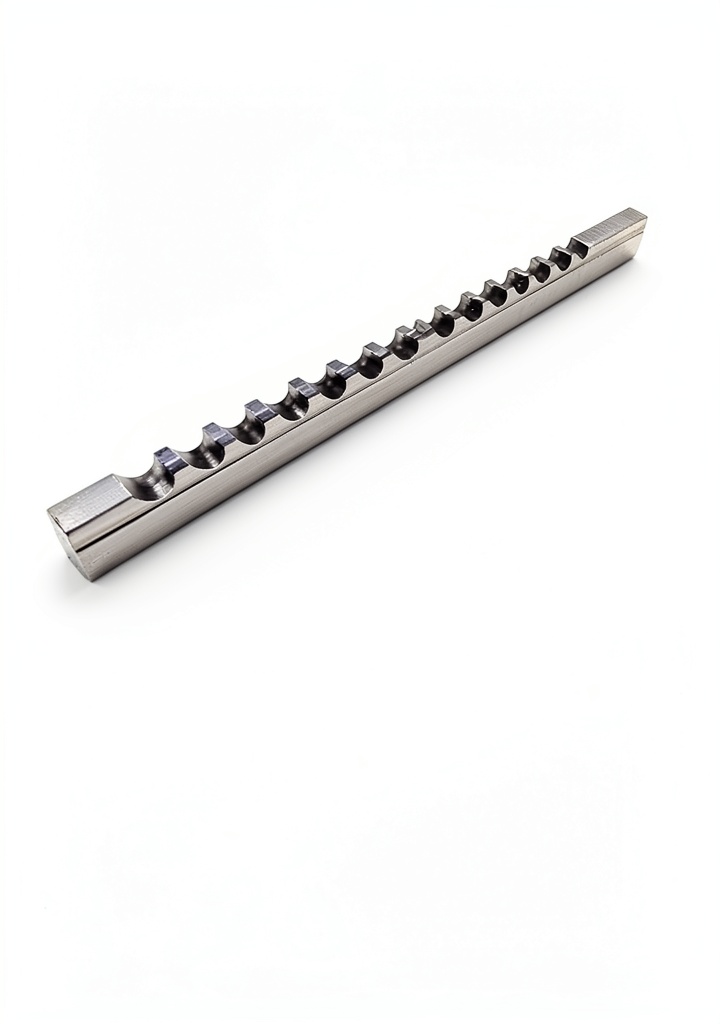

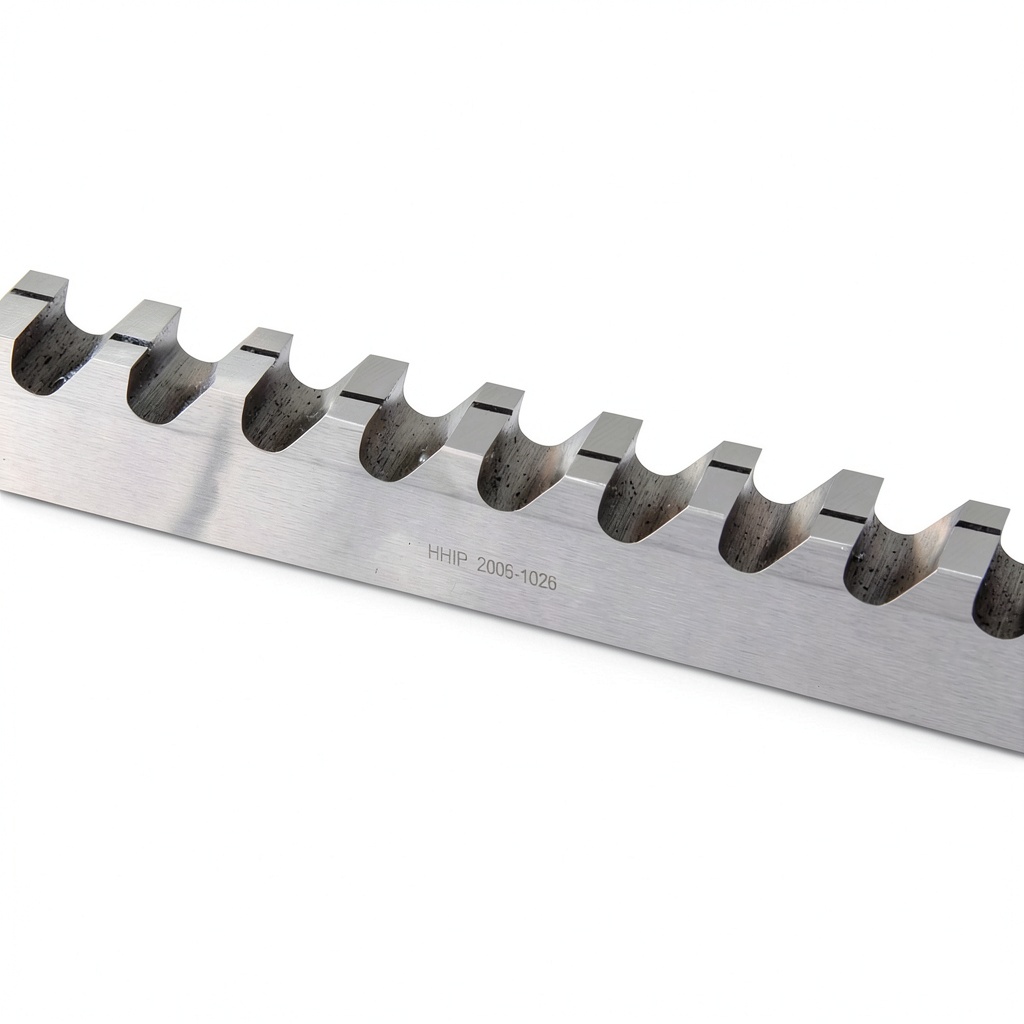

The HHIP 2006-1026 1/4 inch C HSS keyway broach is engineered for high‑precision keyway creation in hardened steel shafts. Constructed from premium high‑speed steel, the broach offers exceptional hardness and wear resistance, allowing it to maintain cutting accuracy over extended production runs. Its tapered geometry and bright‑finished surface reduce friction, delivering a clean, burr‑free keyway profile with each pass.
Measuring 3 x 8 x 3 inches and weighing just 12.63 ounces, this tool balances robust performance with manageable handling. The broach features a 3/8 x 11‑3/4 inch overall dimension, providing ample reach for a variety of shaft diameters while maintaining a compact footprint suitable for most CNC and manual machining setups. The included high‑speed steel shim ensures optimal alignment and stability during operation, minimizing deflection and extending tool life.
Precision tolerances of .2502 to .2512 guarantee tight dimensional control, essential for applications where keyway fit is critical. The broach’s C‑type keyway configuration is specifically designed for standard keyway dimensions, making it a versatile choice for automotive, aerospace, and heavy‑equipment manufacturers. With a best‑seller rank of #22 in the Broaches category, this HHIP model has proven its reliability among professional machinists.
Additional specifications include a minimum cut length of 25/64 inch and a maximum cut length of 2‑1/2 inches, offering flexibility for both shallow and deep keyway cuts. The bright finish not only enhances visual inspection but also reduces heat buildup during cutting, contributing to consistent performance even under demanding production conditions.
Usage
This broach excels in environments where precision and durability are paramount. It is ideally suited for machining hardened steel shafts used in gear drives, motor assemblies, and transmission components. Whether employed on a CNC turret lathe, a manual keyway broaching machine, or a dedicated broaching station, the tool delivers consistent results across a range of production volumes.
Operators will appreciate the ease of setup thanks to the included shim, which aligns the broach perfectly with the workpiece, reducing the need for time‑consuming adjustments. The tool’s design accommodates both intermittent and continuous operation, making it appropriate for batch production as well as high‑throughput manufacturing lines. Its heavy‑duty construction ensures that it can withstand the repetitive stresses of industrial use without premature wear.
For maintenance, the bright‑finished surface simplifies cleaning of metal chips and debris, while the high‑speed steel composition allows for straightforward re‑sharpening by qualified technicians. This extends the service life of the broach, delivering cost‑effective performance over many years of operation.
Why Choose Us
Choosing the HHIP 2006-1026 broach means selecting a tool backed by a reputation for quality and reliability. HHIP, a recognized leader in cutting tool manufacturing, adheres to stringent quality control processes, ensuring each broach meets exacting standards before leaving the factory. This commitment to excellence translates into reduced downtime and higher productivity for your shop.
Our broach is designed with the end‑user in mind, offering a balance of performance and ease of use. The inclusion of a high‑speed steel shim eliminates the guesswork often associated with aligning broaches, allowing technicians to achieve optimal cutting conditions quickly. This reduces setup time and enhances overall workflow efficiency.
In addition to the superior material and engineering, we provide responsive customer support and after‑sales service. Should you require assistance with tool maintenance, sharpening, or replacement parts, our knowledgeable team is ready to help, ensuring your operations continue smoothly without interruption.
Key Features
- High‑speed steel construction delivers exceptional hardness and long tool life for demanding applications.

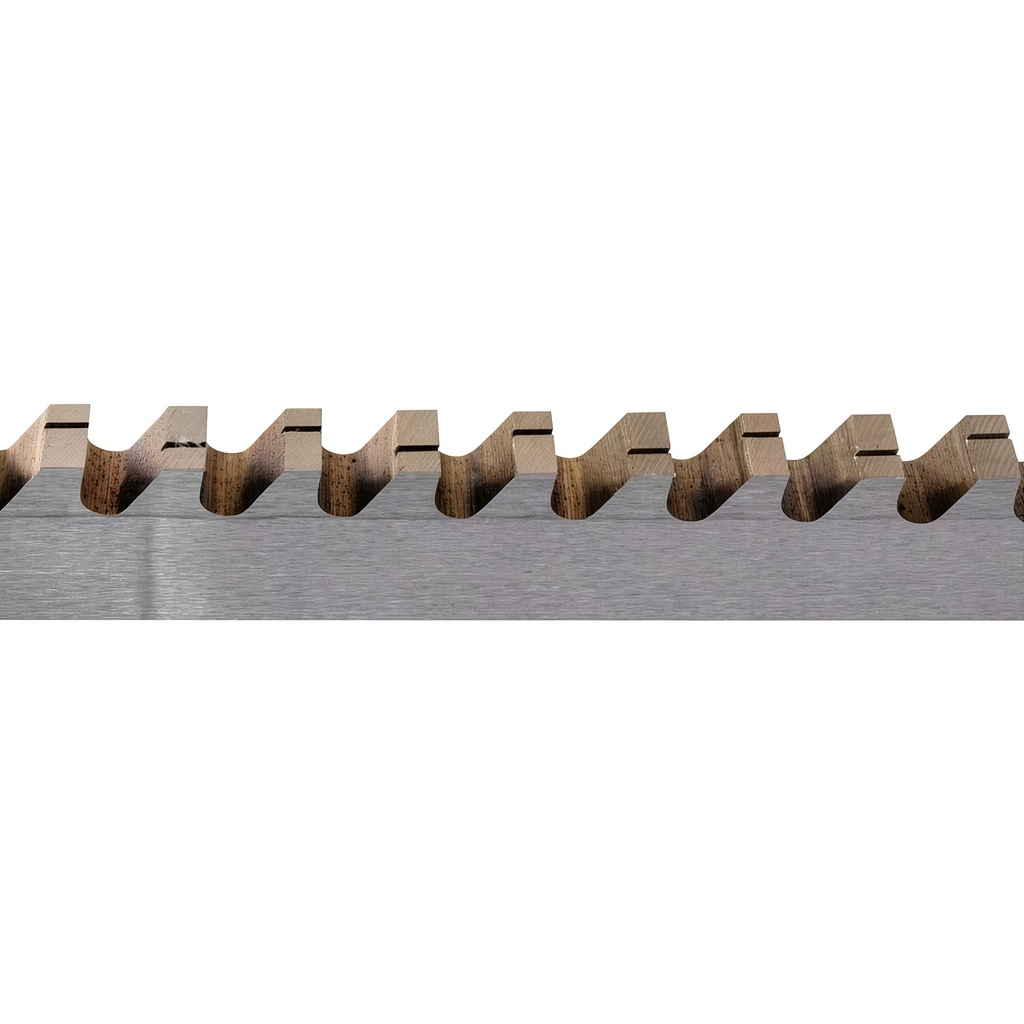

- Tapered, bright‑finished design reduces friction and heat, providing clean, burr‑free keyways.
- Included precision shim ensures perfect alignment, minimizing setup time and improving cutting accuracy.
- Versatile cut length range (25/64″ to 2½”) accommodates both shallow and deep keyway requirements.
- Dedicated customer support and easy re‑sharpening options guarantee reliable performance over years of use.
FAQ
What material is the broach made from?
The broach is fabricated from high‑speed steel (HSS), which provides superior hardness, wear resistance, and the ability to maintain cutting precision even at elevated temperatures.
Do I need any additional tools to use this broach?
No additional tools are required beyond a compatible broaching machine. The package includes a high‑speed steel shim that aligns the broach perfectly with the workpiece, simplifying setup.
Can this broach be re‑sharpened?
Yes, the broach can be re‑sharpened by a qualified technician. The high‑speed steel material is designed for multiple sharpening cycles, extending the tool’s service life and providing cost‑effective performance.
What are the typical applications for this broach?
It is commonly used for creating keyways in hardened steel shafts for automotive transmissions, industrial gear drives, aerospace components, and heavy‑equipment machinery where precise fit and durability are essential.
How does the included shim improve the broaching process?
The shim ensures accurate positioning of the broach relative to the workpiece, reducing run‑out and vibration. This leads to more consistent cuts, less tool wear, and higher overall productivity.
Reviews
There are no reviews yet.
